Mesh Mapper#

Note

Currently only the closest intersection is returned by map_coordinates_from_rays().

Warning

Only cartesian-like coordinate systems (ECEF, UTM, …) should be used for the mapper CRS.

The mesh mapper weitsicht.MappingTrimesh wraps a triangular surface mesh and performs ray/triangle intersection using trimesh. It is designed for two common geospatial tasks:

  • sampling surface heights for given (x, y) locations by casting vertical rays downwards

  • intersecting camera (or LiDAR) rays with the mesh to obtain 3D hit points

Trimesh handles the heavy lifting via trimesh.ray, which builds a BVH (bounding volume hierarchy) to accelerate intersection queries.

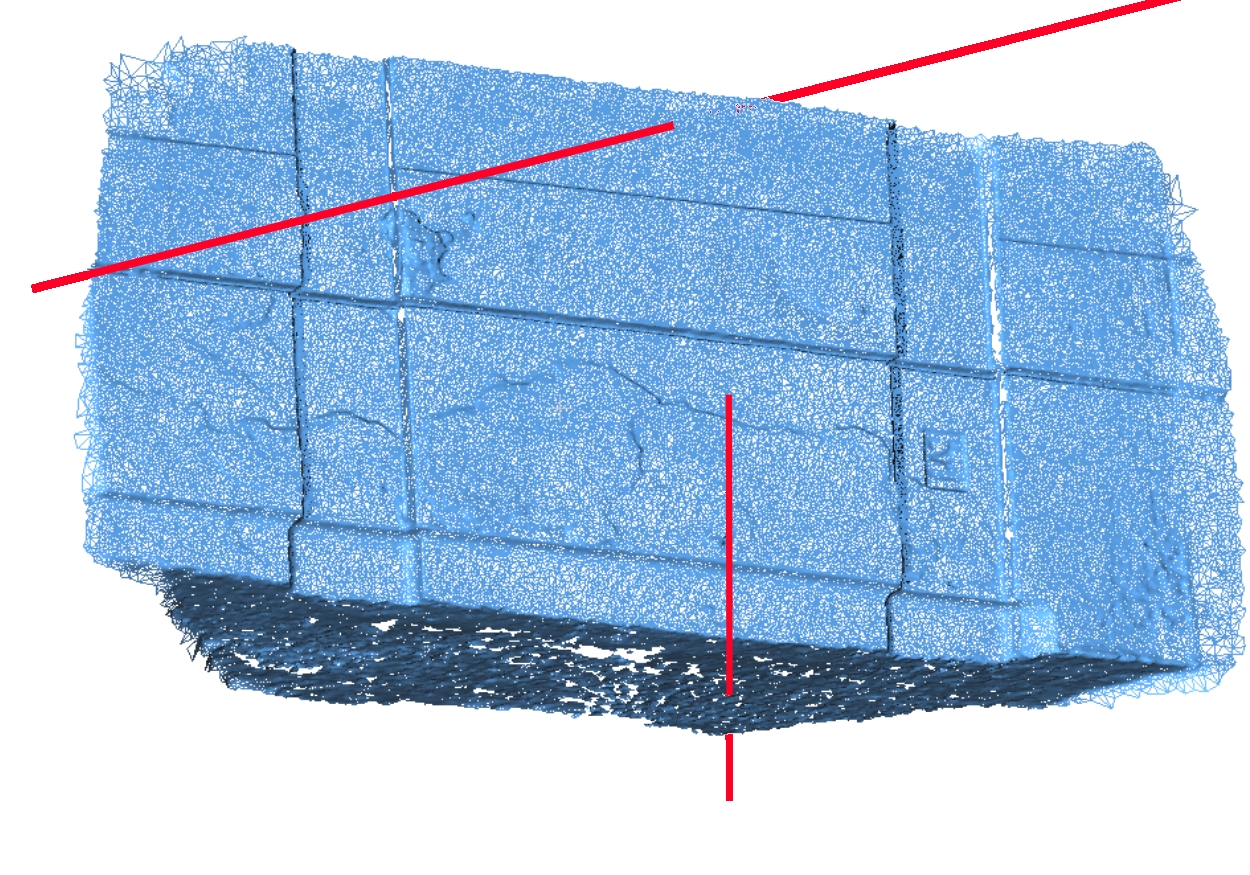

Ray-mesh intersection

Ray/mesh intersection used for height sampling and back-projection.#

Transformation strategy#

The mesh itself is not reprojected. Instead, rays are transformed into the mesh CRS for intersection.

Implementation detail: weitsicht transforms multiple points along each ray (at fixed distances) and reconstructs a robust direction vector in the target CRS. This avoids directly transforming a direction vector through potentially non-linear CRS operations.

Typical workflow#

  1. Initialize the mapper from a mesh file path.

  2. (Optional) specify crs and/or coordinate_shift if the mesh uses a local coordinate origin.

  3. Use either:

    • map_heights_from_coordinates(...) for (x, y) → height sampling, or

    • map_coordinates_from_rays(...) for ray intersections.

Performance notes#

  • For dense ray batches, trimesh may use accelerated backends when installed (platform-dependent).

  • If the mesh has holes, rays can pass without intersections; these rays are returned as invalid.

Minimal example#

import numpy as np
from pyproj import CRS
from weitsicht import MappingTrimesh

mapper = MappingTrimesh(mesh_path="terrain.ply", crs=CRS.from_epsg(32633))

# Height lookup at ground coordinates
xy = np.array([[10.0, 12.5], [15.0, 18.0]])
res_h = mapper.map_heights_from_coordinates(xy, crs_s=mapper.crs)

# Ray intersections (origins + vectors must be in the same source CRS)
# hits = mapper.map_coordinates_from_rays(ray_vectors, ray_starts, crs_s=image_crs)
